Product
Tank type oil-free nitrogen compressor
Product details
Full oil-free design, guide ring, piston ring, piston rod packing are all made of self-lubricating materials, 100% oil-free lubrication. Bearing parts are lubricated with high temperature resistant grease, not in contact with the compression medium, avoiding the pollution of the gas in the compression process and ensuring the purity of the gas. According to the actual gas situation, the compressor is divided into single-stage or multi-stage compression; structural form is divided into single-cylinder, double-cylinder, triple-cylinder, quadruple-cylinder and combined multi-cylinder structure; cooling mode is divided into air-cooled and water-cooled.
Microcomputer controller control, with high compressor discharge temperature, low inlet pressure, exhaust pressure, such as alarm stop function, high level of automation, stable and reliable operation of the compressor. According to the customer's requirements can be configured data remote display and remote control.
This series of compressor has low noise, stable operation and other characteristics, suitable for the process of boosting, stabilizing, power and blowing, but also for the power plant, food industry, medicine and experimental research units to provide a stable gas source.
Suction pressure: 0~ 1Mpa (G), exhaust pressure: ≤10 Mpa (G).

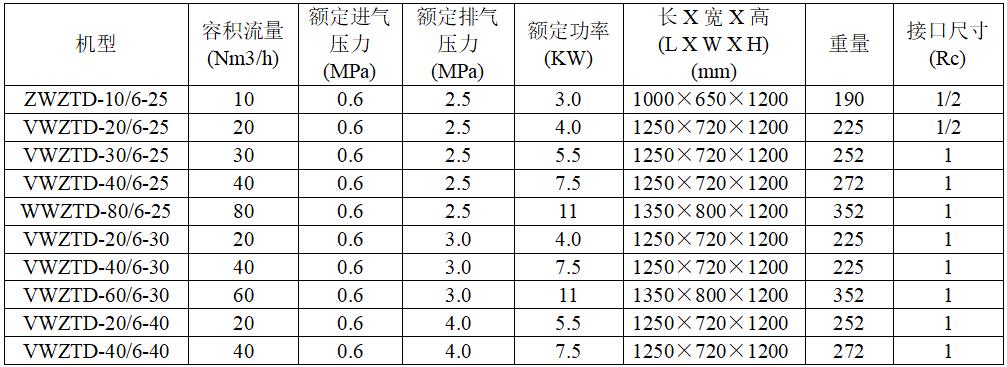

Technical Specification Sheet for Box Type Oil-free Nitrogen Compressor
The above parameters are for reference only, subject to the actual technical program. Models with larger flow rate and more inlet and exhaust pressures can be configured according to the specific requirements of users, please consult us further.
